Royal Key-Operated Quick-Grip™ Collet Chuck
for Manual Lathes

Note – Collets sold separately

Now you can enjoy the same great features of the Royal Quick-Grip™ CNC Collet Chuck on your manual engine lathes, including ten-second collet changes and parallel-grip collets with a full 0.062″ clamping range.
No hydraulic actuator needed – chuck is operated with a traditional square-drive chuck key (included) via a side-access screw.
In addition to manual lathe applications, this chuck can also be utilized on indexers, rotary tables, etc.
By eliminating the drawtube and offering a full 2-5/8″ thru capacity (compared to 1-1/16″ of a 5C collet closer), users can make much better use of their lathe’s spindle capacity.
Very accurate – 0.0005″ TIR guaranteed!
Balanced to 4,000 rpm.
Superior gripping force – up to 16,860 lbs.
Order backplate separately. Other backplate styles available as custom order.
For use with Royal QG-65 collets and installation tools.
Note – this product is specifically designed for use on manual equipment not equipped with a hydraulic actuator. For CNC lathes, better performance will be achieved through the use of Royal CNC Collet Chucks.

Royal Key-Operated Quick-Grip™ Collet Chuck for Manual Lathes*

Collet Model	Collet Capacity	PART NUMBER	PRICE
		11577	$834.00	Add
		11576	$834.00	Add
		11579	$916.00	Add
		11578	$916.00	Add
		11581	$1,770.00	Add
		11580	$1,770.00	Add
		22530	$29.75	Add
		22520	$12.75	Add
16C	1 5⁄8	62006	$2,260.00	Add
		22550	$32.25	Add
		22560	$49.25	Add
3J	1 3⁄4"	62008	$2,260.00	Add
		22540	$30.00	Add
		20103	$298.00	Add
		20102	$272.00	Add
		20104	$299.00	Add
		20101	$286.00	Add
		20112	$383.00	Add
		20108	$330.00	Add
		20107	$314.00	Add
		20109	$414.00	Add
		20117	$413.00	Add
		20100	$286.00	Add
		20127	$807.00	Add
5C	1 1⁄16"	62002	$1,725.00	Add
5C (for HRT-100 & 110)	1 1⁄16"	62004	$1,725.00	Add
		20131	$66.00	Add
		20130	$62.00	Add
		20132	$68.00	Add
		20136	$82.00	Add
		20135	$88.00	Add
		20020	$258.00	Add
		20022	$342.00	Add
		20024	$532.00	Add
		20025	$689.00	Add
		22146	$49.50	Add
		30315	$1,550.00	Add
		28159	$470.00	Add
		28165	$541.00	Add
		70670	$721.00	Add
		70625	$186.00	Add
		70675	$654.00	Add
		70586	$107.00	Add
		70589	$112.00	Add
		70592	$132.00	Add
		70595	$167.00	Add
		70598	$167.00	Add
		70080	$617.00	Add
		70070	$617.00	Add
		70100	$678.00	Add
		70090	$678.00	Add
		70290	$988.00	Add
		70300	$988.00	Add
		73500	$822.00	Add
		70010	$794.00	Add
		70120	$764.00	Add
		70616	$186.00	Add
		70619	$186.00	Add
		70580	$107.00	Add
		70583	$112.00	Add
		73700	$956.00	Add
		73510	$602.00	Add
		70020	$599.00	Add
		70030	$599.00	Add
		73520	$602.00	Add
		70601	$167.00	Add
		70607	$167.00	Add
		70610	$167.00	Add
		73710	$1,030.00	Add
		70050	$570.00	Add
		70110	$678.00	Add
		73010	$754.00	Add
		73020	$758.00	Add
		73030	$799.00	Add
		73050	$750.00	Add
		73040	$822.00	Add
		73060	$835.00	Add
		73070	$840.00	Add
		73080	$882.00	Add
		73090	$910.00	Add
		73110	$1,070.00	Add
		73120	$1,105.00	Add
		73130	$1,125.00	Add
		73150	$1,070.00	Add
		73140	$1,155.00	Add
		70678	$107.00	Add
		70680	$151.00	Add
		70682	$163.00	Add
		75402	$1,050.00	Add
		75404	$960.00	Add
		75406	$1,295.00	Add
		75403	$1,060.00	Add
		75408	$1,280.00	Add
		74622	$252.00	Add
		74612	$211.00	Add
		74620	$252.00	Add
		74610	$211.00	Add
		74623	$450.00	Add
		74613	$386.00	Add
		74624	$289.00	Add

12…28

*Order backplate, collets, and installation tool separately.

Royal Backplates for Key-Operated QG Collet Chuck

PART NUMBER	PRICE
51237	$4,195.00	Add
51238	$4,995.00	Add
51239	$5,695.00	Add
43991	$2,350.00	Add
43992	$2,625.00	Add
43993	$3,170.00	Add
REBLT135.66X6	$733.00	Add
65132	$3,940.00	Add
65204	$9,985.00	Add
65206	$9,985.00	Add
65212	$7,185.00	Add
65213	$7,185.00	Add
65221	$7,185.00	Add
65222	$7,185.00	Add
65217	$6,735.00	Add
65218	$6,735.00	Add
65202	$9,985.00	Add
65210	$6,735.00	Add
65211	$6,735.00	Add
65220	$7,185.00	Add
65215	$6,285.00	Add
65216	$6,285.00	Add
51207	$33,905.00	Add
51223	$41,985.00	Add
43985	$4,405.00	Add
43986	$4,660.00	Add
43987	$6,425.00	Add
66014	$0.00	Add
66070	$0.00	Add
RBELT53.38X6	$361.00	Add
66062	$1,095.00	Add
66066	$1,495.00	Add
66063	$0.00	Add
RBELT97X6	$472.00	Add
66060	$129.00	Add
66061	$149.00	Add
51230	$4,485.00	Add
51231	$4,820.00	Add
51232	$5,800.00	Add
51233	$8,970.00	Add
51225	$2,890.00	Add
51226	$3,035.00	Add
51227	$3,340.00	Add
51228	$3,710.00	Add
51206	$33,905.00	Add
51202	$33,905.00	Add
51204	$33,905.00	Add
51212	$37,405.00	Add
51208	$37,405.00	Add
51210	$37,405.00	Add
51216	$41,985.00	Add
51213	$41,985.00	Add
51214	$41,985.00	Add
51218	$48,260.00	Add
51220	$48,260.00	Add
51217	$48,260.00	Add
44190	$2,595.00	Add
66042	$1,365.00	Add
66040	$780.00	Add
66036	$1,420.00	Add
66034	$895.00	Add
66028	$1,595.00	Add
66026	$912.00	Add
66046	$281.00	Add
66044	$196.00	Add
66051	$9,525.00	Add
66052	$8,270.00	Add
66053	$8,270.00	Add
66008	$2,725.00	Add
66010	$2,925.00	Add
66000	$1,220.00	Add
66002	$1,470.00	Add
66004	$1,520.00	Add
66038	$808.00	Add
66024	$1,295.00	Add
66020	$637.00	Add
66022	$744.00	Add
45370	$540.00	Add
45371	$540.00	Add
45372	$540.00	Add
45373	$540.00	Add
45374	$540.00	Add
45375	$540.00	Add
45376	$540.00	Add
45377	$540.00	Add
45378	$540.00	Add
45379	$540.00	Add
45380	$540.00	Add
45381	$540.00	Add
45382	$540.00	Add
45383	$540.00	Add
45300	$362.00	Add
45301	$362.00	Add
45302	$362.00	Add
45303	$362.00	Add
45304	$362.00	Add
45305	$362.00	Add
45306	$362.00	Add
45307	$362.00	Add
45308	$362.00	Add

12…28

Hardened and precision ground.
Backplates accept Royal Quick-Grip™ stops.

ROYAL ULTRA-PRECISION QUICK-GRIP™ COLLETS

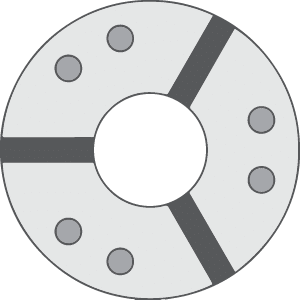

QG-65

**QG-65 CAPACITY**
Bar Diameter	2.66" (65.8mm)
Slug Diameter	3.40" (86.4mm)

Huge inventory of Round, Hex, Square, and Emergency styles always in stock, ready for same-day shipping.
Smooth and serrated versions for round-bore models (all others smooth only).
Industry-leading 0.062" gripping range covers a wide range of part diameters. Collets are ground to nominal size and have a range of ±0.031".
Parallel-grip ensures full-length part contact for maximum grip force, rigidity, and accuracy.
Can be counter-bored for increased part capacity up to 3.40" – see QG-65 Royal Boring Fixtures for details.
Quick-ship specials available for custom shapes.

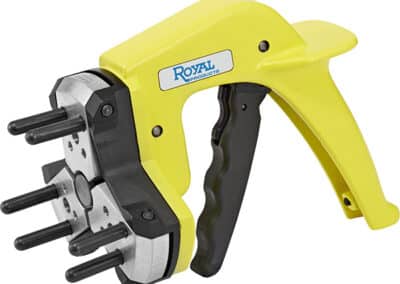

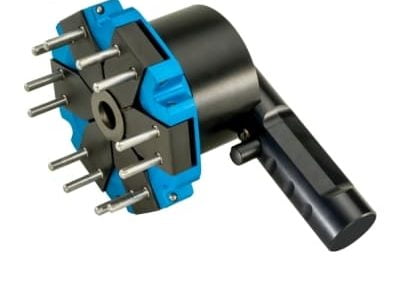

Can utilize manual and pneumatic changing tools.
