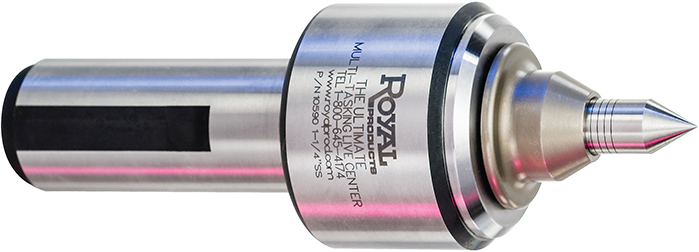

Royal Ultimate™ Multi-Tasking Live Center
- Designed specifically for use on the latest multi-tasking CNC machines with lower turrets and/or sub-spindles.
- Spring-loaded point overcomes the lack of hydraulic compensation found on tailstocks, protecting lower turrets and sub-spindles from overloading and/or crashes.

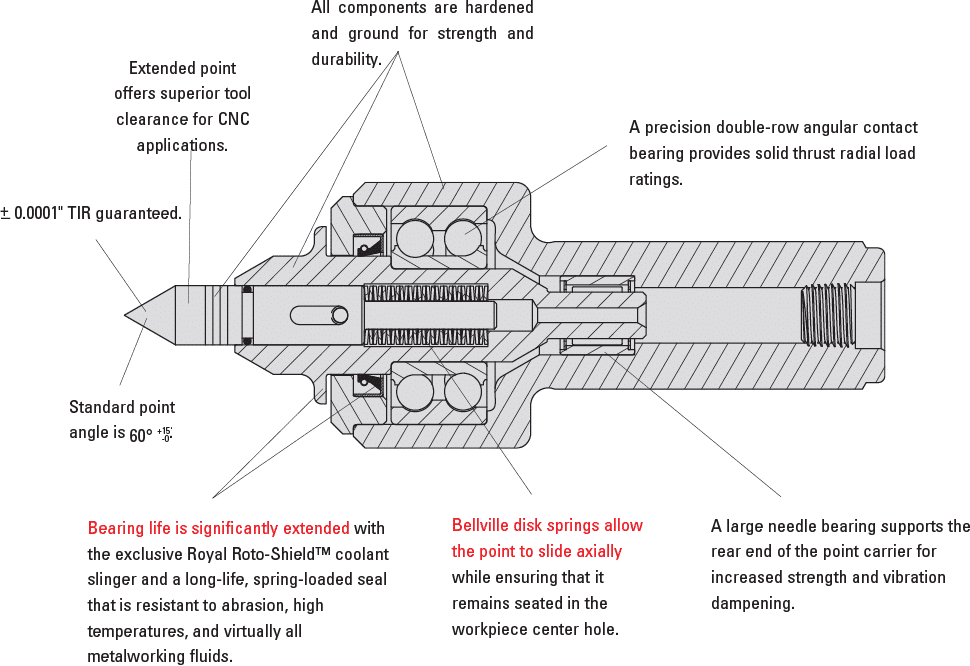

- Much longer operating life than other spring-type live centers due to the outstanding sealing characteristics of the exclusive Royal Roto-Shield™ coupled with a long-life spring-loaded neoprene seal.
- Heavy-duty bearing configuration and optimized spring-pak make the Royal Ultimate™ the perfect choice for all multi-tasking machines.
Spring-Loaded Point for Lower Turret and Sub-Spindle Applications
High-Pressure Coolant Approved

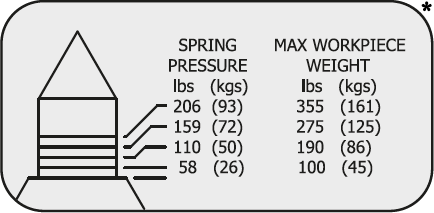

* A graphical representation laser-marked onto the body of each Ultimate™ Multi-Tasking Live Center takes the guesswork out of the setup process by clearly identifying optimal working parameters.

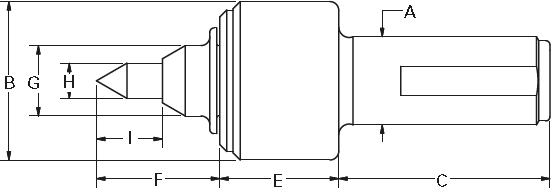

Royal Ultimate™ Multi-Tasking Live Center
1 Maximum recommended operating limit. Operating above this speed could result in heat build-up and accelerated bearing wear.
2 Exceeding thrust load will bottom-out springs.
Insist on Roto-Shield™ Technology – Only Available on Royal Live Centers
