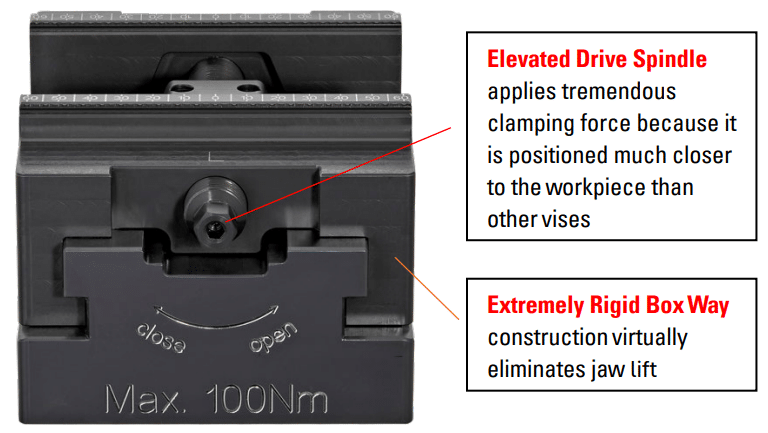

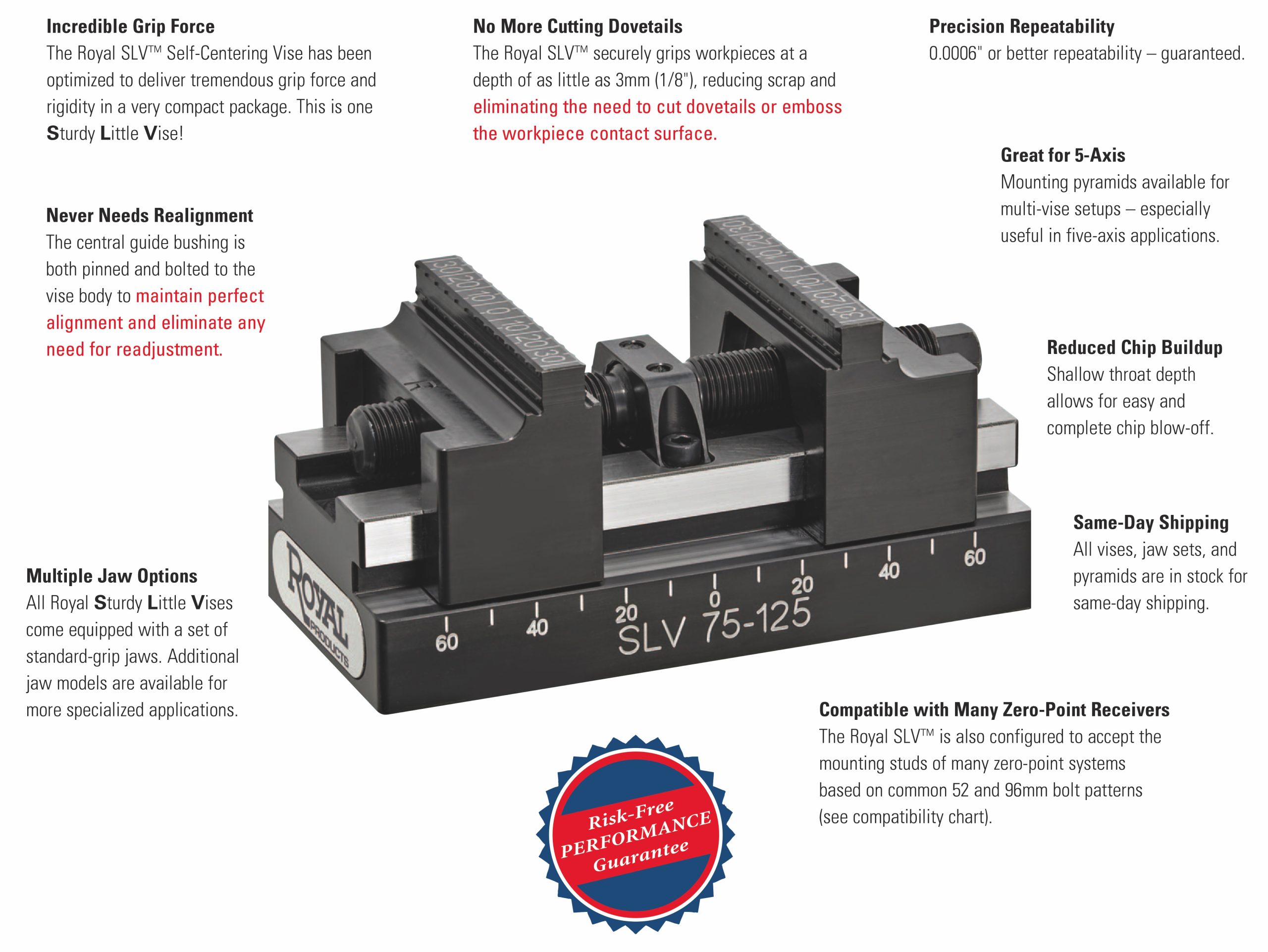

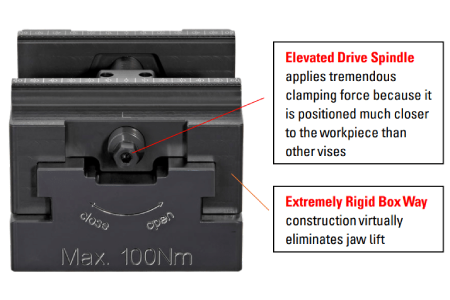

- Extremely rigid one-piece jaw design is modeled after a CNC box way to minimize deflection through captive, multi-plane contact. Jaw lift is virtually non-existent.
- The massive drive spindle is elevated to apply the clamping force much closer to the workpiece compared to other vises.
- The hardened vise body is machined from a proprietary tool steel for maximum strength and rigidity.
Eliminate Jaw Lift & Jaw Flex!

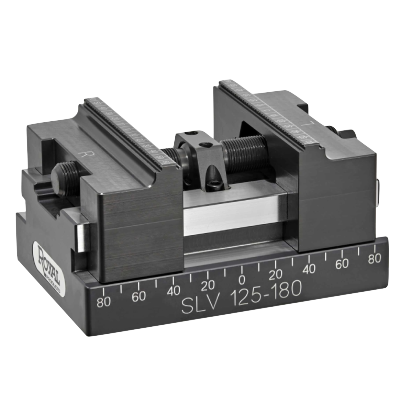

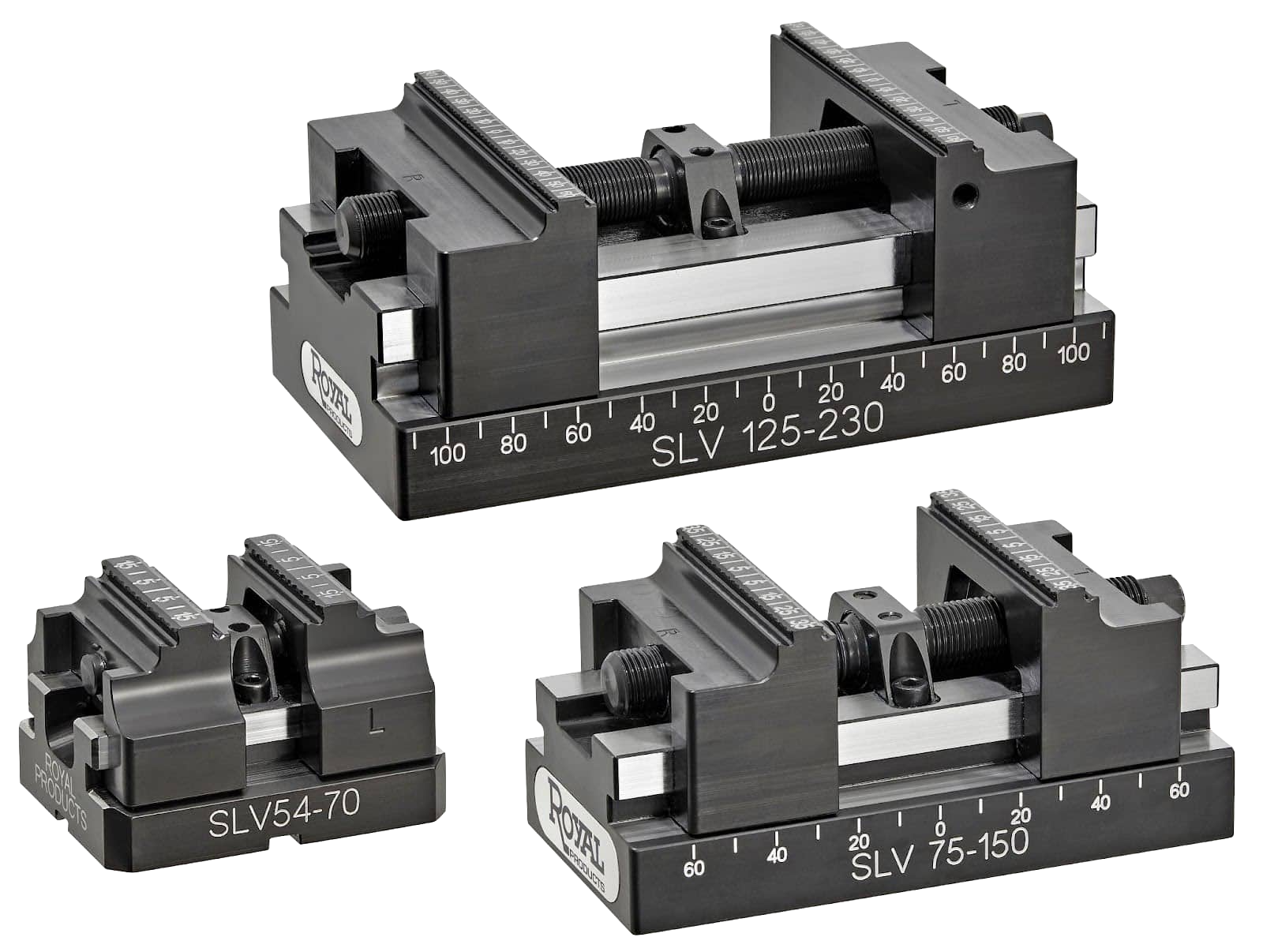

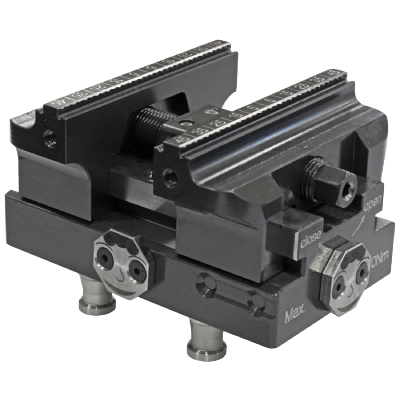

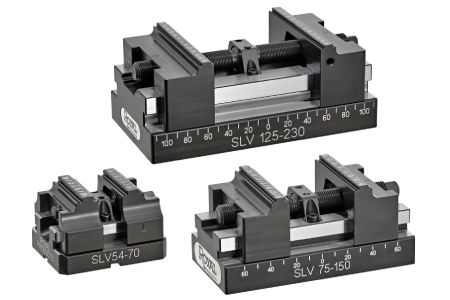

SLV™ – Self-Centering Vises and Receivers
Never Let Your Workholding be the Limiting Factor in Your Machining Processes
Try a Royal SLV™ on Your Toughest Application RISK-FREE!

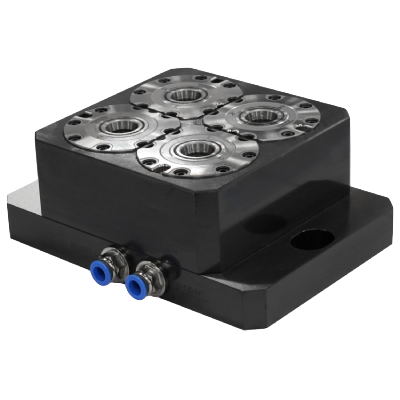

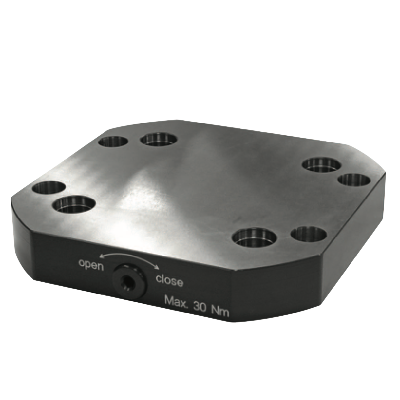

Universal Zero-Point Receiver Compatibility
- Royal SLV™ Vises have been designed for compatibility with many popular zero point quick-change receivers.
- If you don’t already own a zero-point system, it’s hard to beat the Royal Z-Lock™ in terms of accuracy, rigidity, and cost. See full catalog for details.

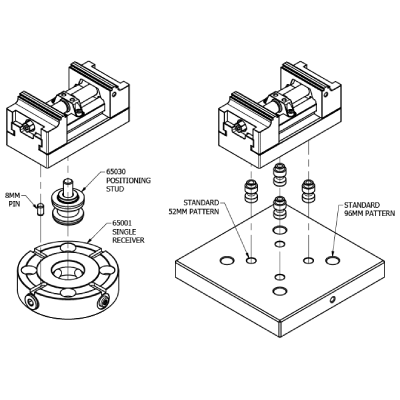

- If you’ve already standardized on a zero-point system that utilizes 52 or 96mm square mounting patterns, you can still upgrade your vises to the Royal SLV™ and enjoy increased performance, productivity, and profits. Simply screw your studs right into the hardened vise base. See receiver compatibility chart below.

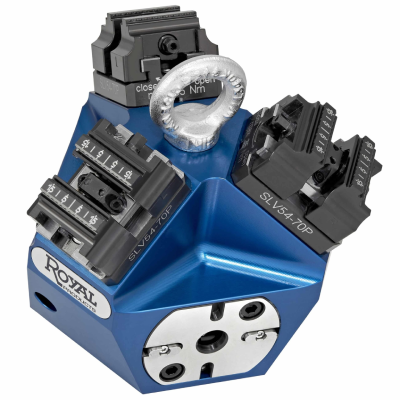

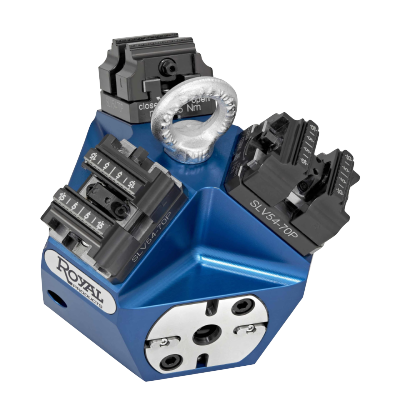

Multi-Vise Pyramids Optimize 5-Axis Production
- With Royal Multi-Vise Pyramids, you can take advantage of 5-axis flexibility and increase throughput by machining several parts in a single setup
- Manufactured from aircraft-grade aluminum to accommodate 5-axis weight restrictions
- Model 66051 includes three SLV™ 54-70 vises, and is machined to accept three additional 54-70 vises (sold separately).
- Model 66052 includes three SLV 75-125 vises.

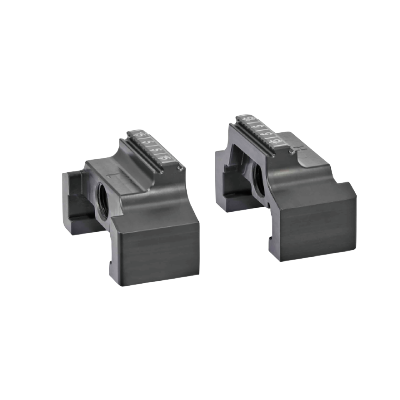

- All vises are supplied with standard jaws.
- Removable lifting ring supplied for installation ease.
Incredible 25x Part Length to Gripping Depth Ratio with No Movement!
This workpiece is over 9 inches long and is being gripped on an un-prepped edge at a depth of only 0.35″ – no dovetails and no dimpling!
